POWERBAY / POOL MASTER

Pool Care.
Simplified.

Heating, cooling and water care.
One compact system.

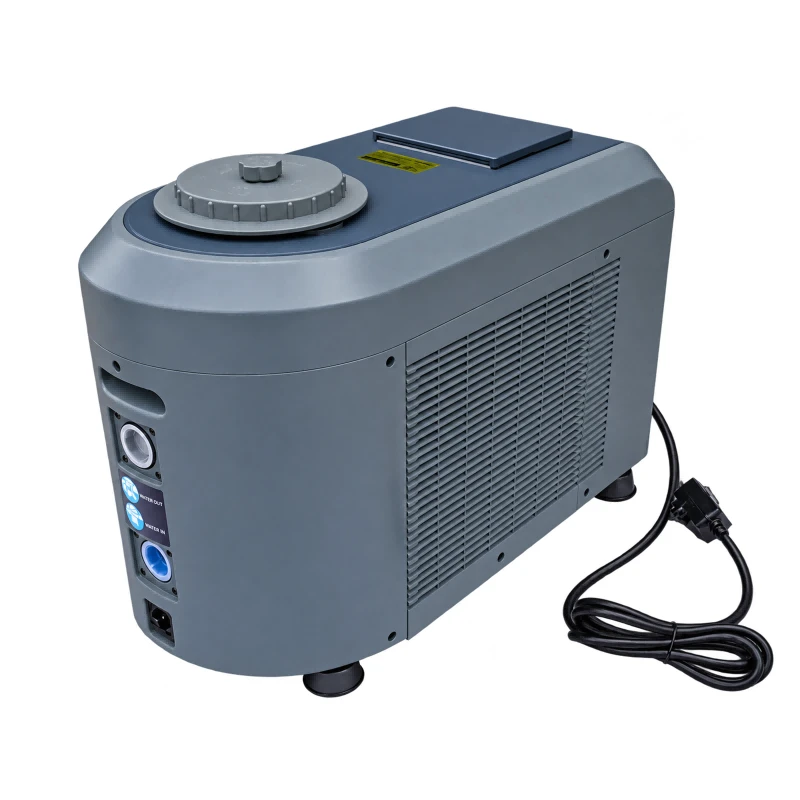

A reversible Full Inverter heat pump, circulation pump, cartridge filtration and salt chlorination — brought together in the All In One PowerBay Pool Master.

One Unit. Five Essential Pool Functions.

Buying Equipment Separately

Heat Pump with Heating & Cooling

A reversible heat pump provides both heating and cooling. In a separate-equipment setup, it is purchased alongside additional equipment for salt chlorination, water circulation and filtration.

Salt Chlorinator

A standalone salt chlorinator is purchased separately for salt-based water treatment. It forms another part of the pool setup, alongside the heating and cooling equipment and the pump-and-filter system.

Circulation Pump + Filter

A circulation pump moves the water, while a filter handles filtration. Together, they form another equipment group to purchase and connect alongside the heat pump and salt chlorinator.

Separate equipment to buy，cost more.

Buying a PowerBay All In One Pool Master

All In One Pool Master. All five functions built in，save more.

Essential Functions of PowerBay All In One Pool Master

Bring temperature control and everyday water care together in one integrated system.

Heating & Cooling

A reversible Full Inverter heat pump provides both heating and cooling for pool and spa temperature control.

Water Circulation

The built-in water pump has a listed flow rate of 2,300 litres per hour to circulate water through the system.

Cartridge Filtration

Integrated cartridge filtration brings water filtration into the same compact unit.

Salt Chlorination

Built-in salt chlorination provides automatic water treatment, with normal and boost operating modes.

REVERSIBLE FULL INVERTER

Warm It Up. Cool It Down.

Choose heating, cooling or automatic operation, with mode-specific target temperature ranges listed in the Pool Master brochure.

HEATING

15–40°C

Target temperature range

COOLING

3–15°C

Target temperature range

CONNECTED CONTROL

Control Your Pool,
Your Way.

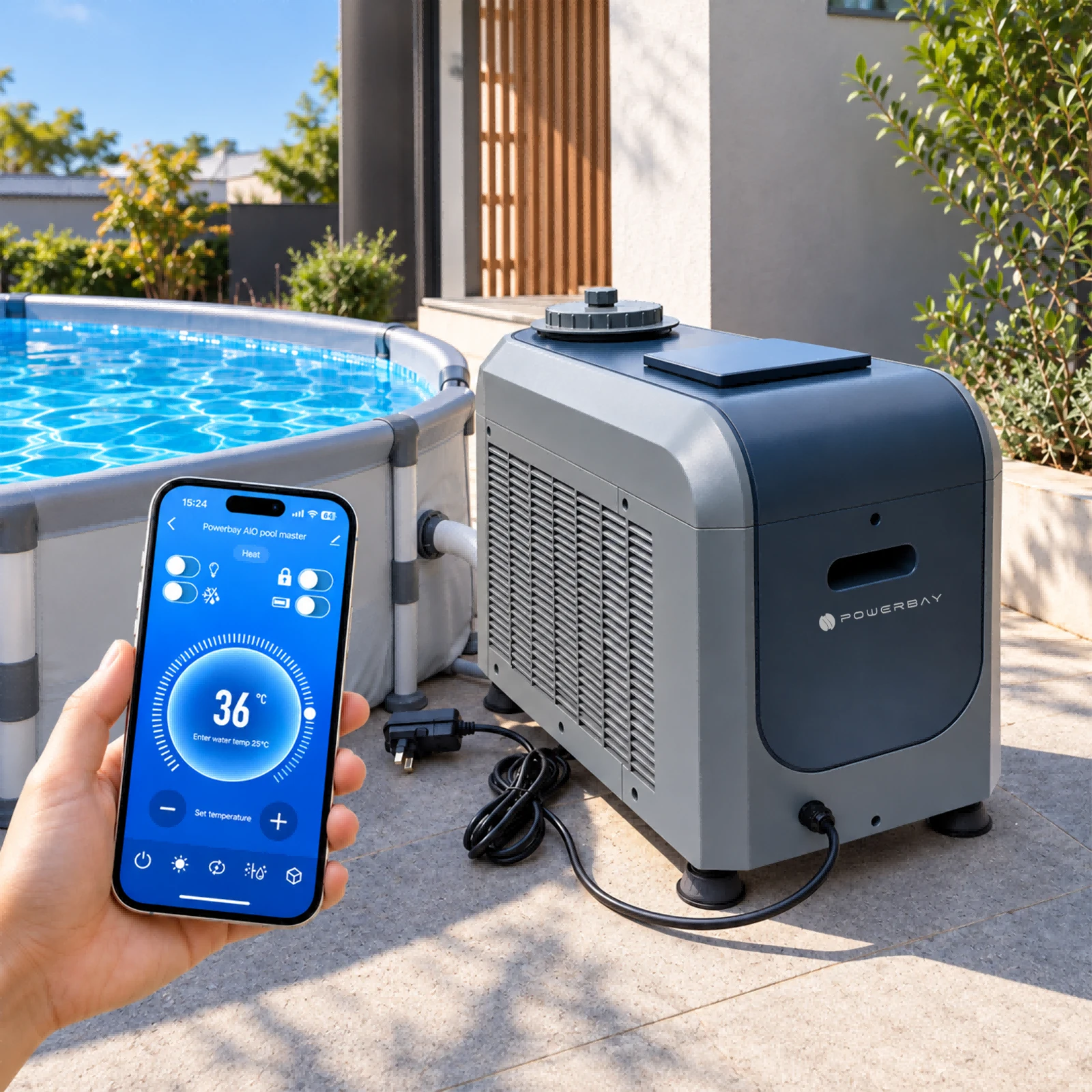

Built-in Wi-Fi brings Pool Master control to your smartphone. View temperature information and adjust supported settings through the app, making everyday pool and spa management more convenient without standing beside the unit.

Temperature at a Glance — Check the temperature displayed in the app before using your pool or spa.

Simple Adjustments — Use the on-screen controls to set your preferred water temperature.

Connected Convenience — Manage your Pool Master from your phone, with access to supported controls through the connected app.

App functions require the appropriate connection and setup.

ON-UNIT CONTROL

Clear Controls.
Right on the Unit.

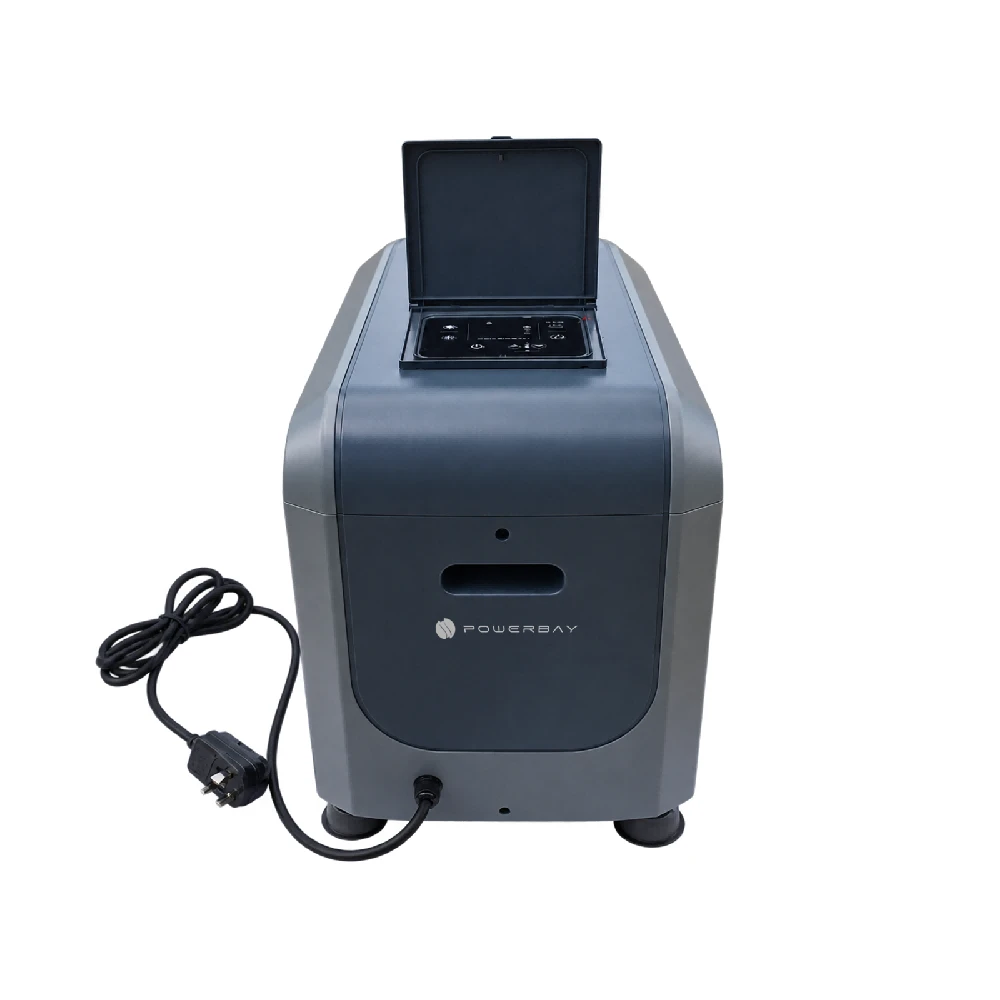

The built-in control panel brings the temperature display and operating controls together on the unit, giving you another way to manage your Pool Master.

Panel display shown for illustration.

DESIGNED TO WORK TOGETHER

A Simpler Setup
for Smaller Pool Spaces.

10A

STANDARD PLUG

Plug & Play connection, as specified in the product brochure.

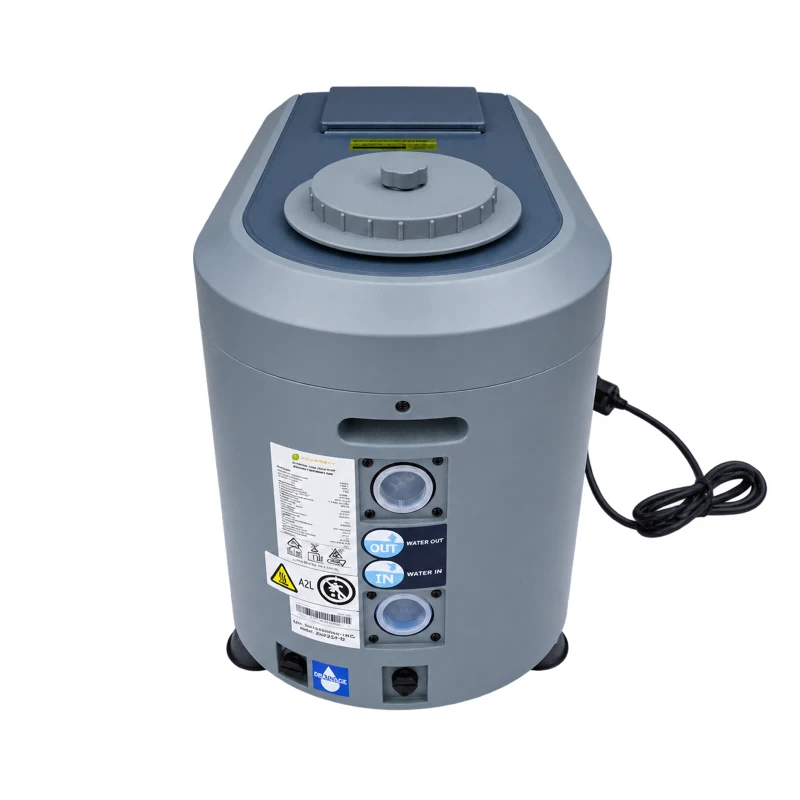

32 / 38mm

HOSE CONNECTIONS

Connection sizes for compatible pool and spa setups.

Pools & Spas

INCLUDING ICE BATHS

Designed for compatible above-ground pools, spas and ice baths.

Check your pool volume, connections and site requirements before selecting the system. Follow the product installation instructions.

Technical Specifications

Item	Specification
Pool volume	<= 10000 litres
Power supply	230 V - 50 Hz
Max power	1.25 kW
Connections	32 / 38 mm
Noise level at 10m	<= 35 dB
Compressor Type	Rotary
Refrigerant	R32
Operating Range	-7℃ - 43℃
Flow rate	2300 litres / hr
Power	140W

Packaging & Dimensions

Net/Gross Weight:
130/144kg

	Length	Width	Height
Unpacked Dimension	406mm	780mm	595mm
Package Dimension	450mm	905mm	630mm

Delivery& Installation

If installation services are required, our team can assist in arranging qualified installers for your project.

Orders are typically dispatched the next business day (subject to stock availability and order timing), with final delivery schedules confirmed upon order.

Disclaimers

1. Actual performance may vary depending on ambient temperature, pool water volume, installation conditions, water quality and operating environment.

2. Installation must be carried out by qualified pool‑licensed professionals in accordance with local Australian regulations and manufacturer installation guidelines.

3. Product specifications and appearance may be subject to change without prior notice for continuous product improvement.

4. Improper use, unauthorized modification, incorrect water‑chemistry settings or failure to follow user instructions may result in performance degradation or safety risks. The manufacturer shall not be held liable in such circumstances.

5. Optimal performance is achieved within the specified operating temperature range. Extreme ambient weather conditions may impact heating efficiency.

6. Regular pool maintenance including filter cleaning and proper salt‑level management is required to maintain product lifespan and performance.
